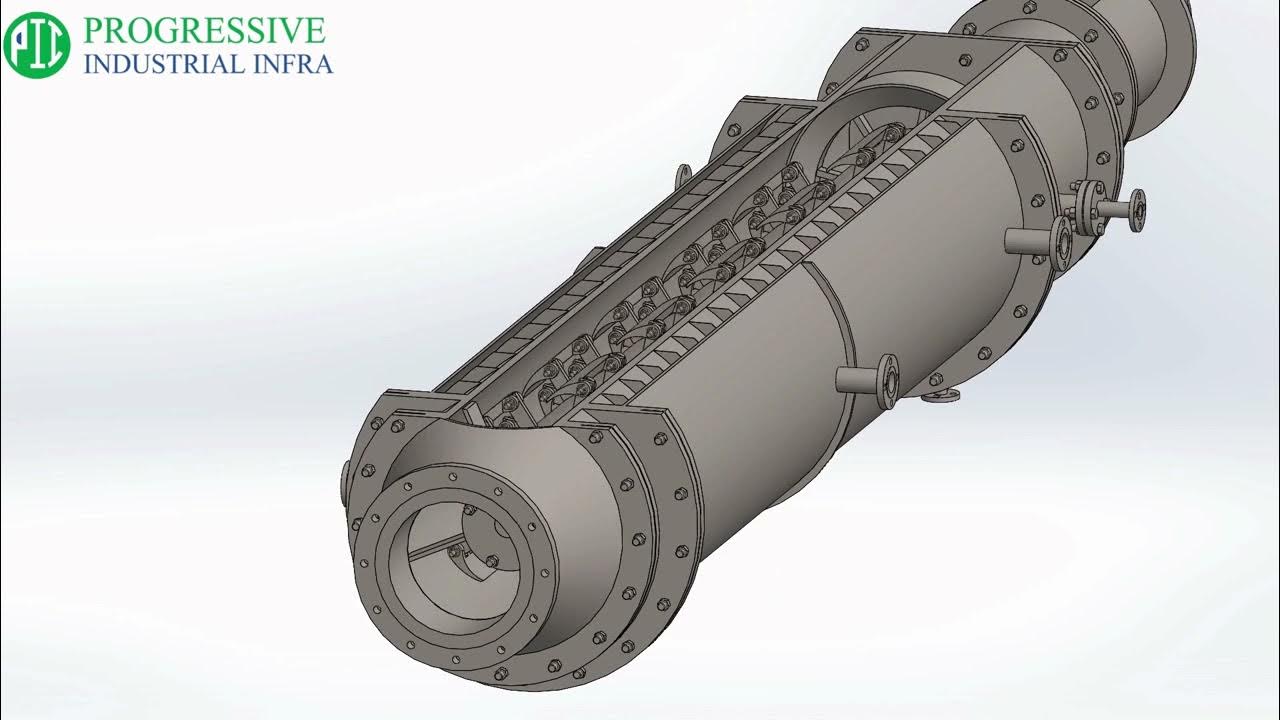

Product Image

AFTD

Agitated Thin Film Dryer (AFTD) is a very modernized and a dynamic equipment . It is mainly useful for make concentration (high viscosity fluids) to salt form and to separate condensate .in this the blower or vacumm pump is used to raise surface temperature . Rotor with attached blades will help to remove the salt that are attached to the inner shell of AFTD.

Get A Quote

We use blower or vacuum pump to create vacuum.  Centrifugal pumps used for feeding & condensate recovery.  For ATFD agitator gear box with motor will be used by connecting VFD

Equipment's used ATFD, cyclone separator or entertainment separator, condenser, feed tank with agitator, condensate vessel.  PII manufacturing range: 1.5M2 to 40M2.  PII can manufacturer ATFD with below MOC. MOC selection majority depends up on the nature in the effluent.

Selection Criteria: AFTD will be operated minimum TDS % = 25 %

Key points about Forced Circulation Evaporators (PII FC Evaporators) and their application:

Depend upon the capacity of water to be evaporated the no of effect can be increase. Falling film circulation evaporator will be design for maximum 3 effect. .
The entire pump used in evaporator is centrifugal with double
Falling film circulation system is operated by the vacuum base, due to this evaporation done in below boiling point of water and for smooth running of plant
PII Evaporator process equipment involved: Calandria, Vapour separator, condenser, condensate vessel and feed tank
PII Can design of evaporator with thermic fluid, steam, hot water. Other major utilities involved is cooling water, power
PII Manufacturing range: 5 KLPD to 2 MLD
PII can manufacturer evaporator with below MOC. MOC selection majorly depends up on the salt present in the effluent.
  • a )SS316
  • b) SS304
  • c) Duplex
  • d) Super duplex
  • e) Titanium
PII can also manufacturer the Evaporator in other MOC also or combination of above given MOC.
It is for solvent recovery from the product or effluent and recovered solvent can be re-used.
    Industries we serve: 1))Pharmaceuticals and drug industries 2)Chemical industries 3)Fertilizers industries 4) AGRO industries
